Photographs are for identification. Appearance can vary by model and revision.
Brand on enquiry · Sensors & encoders

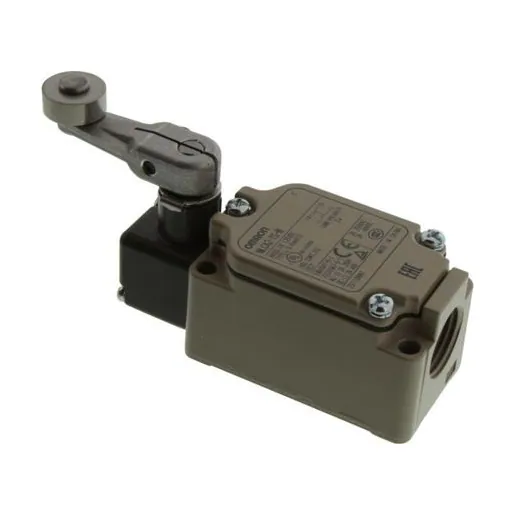

Limit Switches: Mini and Heavy-Duty NL Series
Mechanical limit switches
Compact mini limit switches and heavy-duty NL-series limit switches with a choice of operating heads, both built to IEC 60947-5-1.

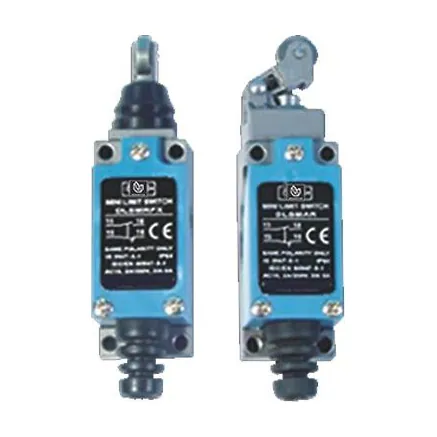

- Mini: compact design with crossbar contacts, zinc die-cast base and polyamide cover

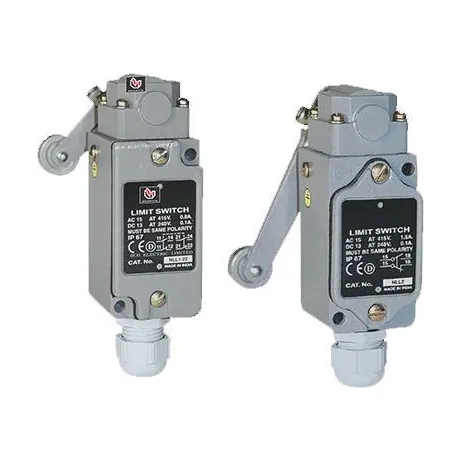

- NL series: heavy-duty zinc die-cast body, 18 operating heads, IP67
- Screw-terminal or pre-wired versions (NL)
Adding to the list only saves it in your browser. Nothing is sent until you press a send button on the enquiry page. Price and availability are given on quotation.
Specifications
- Standard
- IEC 60947-5-1
Specifications are given to identify and compare products. Confirm the exact model, ratings and options against the manufacturer’s datasheet, or with us, before ordering.
Variants
| Type | Contacts | Notes |
|---|---|---|
| Mini limit switch | On request | Dust-proof, water-proof and oil-resistant; long mechanical and electrical life |
| Heavy-duty NL series | 1 NO + 1 NC or 2 NO + 2 NC | Choice of 18 operating heads; oil-tight, water-tight, dust-proof (IP67) |
Choosing the right one
Not sure this is the right sensors and encoder? Read the buying guide for sensors and encoders, then send us the details below so we can confirm a model.
- Sensor type: inductive, photoelectric, fibre, pressure or encoder
- Sensing distance, or pulses per revolution and shaft size for encoders
- Supply voltage and output type (NPN/PNP, NO/NC)
- Housing size or mounting details
- Existing part number if you are replacing a unit
