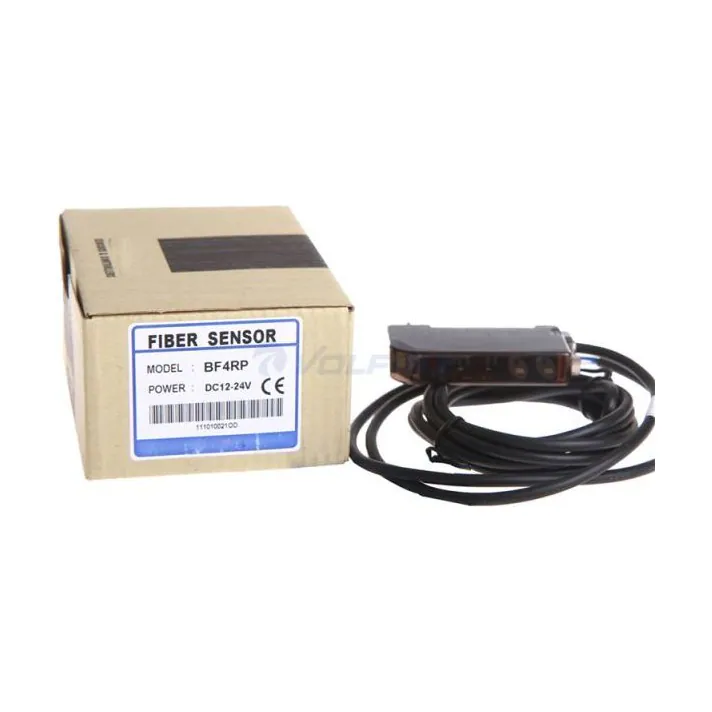

Autonics BF4RP Fibre Optic Amplifier
Fibre optic sensor amplifier
Standard-type fibre amplifier with a red LED light source and selectable light-ON / dark-ON operation.
- Red LED (660 nm)
- Response time 0.5 ms or 0.7 ms depending on mode
- Light ON / dark ON set by button
- PNP open-collector output
Adding to the list only saves it in your browser. Nothing is sent until you press a send button on the enquiry page. Price and availability are given on quotation.
Specifications
- Type
- Standard type
- Light source
- Red LED, 660 nm
- Response time
- Max. 0.5 ms (frequency 1); max. 0.7 ms (frequency 2)
- Supply
- 12 – 24 V DC ±10%
- Output
- PNP open collector
Specifications are given to identify and compare products. Confirm the exact model, ratings and options against the manufacturer’s datasheet, or with us, before ordering.
Choosing the right one
Not sure this is the right sensors and encoder? Read the buying guide for sensors and encoders, then send us the details below so we can confirm a model.
- Sensor type: inductive, photoelectric, fibre, pressure or encoder
- Sensing distance, or pulses per revolution and shaft size for encoders
- Supply voltage and output type (NPN/PNP, NO/NC)
- Housing size or mounting details
- Existing part number if you are replacing a unit
