Drives & motion
Servo gearboxes
Planetary and right-angle precision gearboxes for servo and stepper motors.
Search and filter this categoryIn the catalogue
3 product lines listed
Brand on enquiry

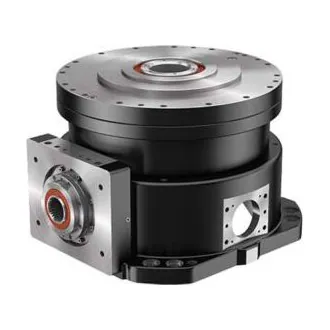

RS and RDR-C Right-Angle Precision Gearheads
Right-angle hollow-shaft reduction gearheads
Buying guide
How to choose: precision gearboxes
Planetary and right-angle gearboxes

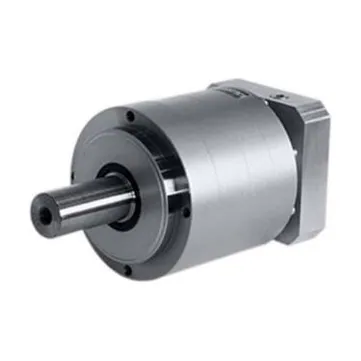

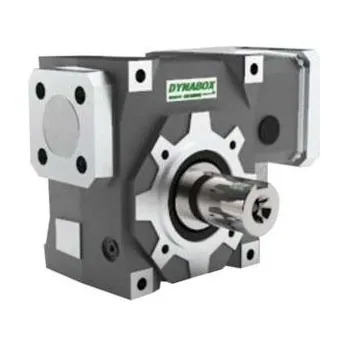

Precision gearboxes reduce motor speed and multiply torque while keeping backlash low. Inline planetary gearboxes are coaxial, compact and have high torque density. Right-angle (worm or bevel-based) gearboxes turn the drive through 90 degrees, which helps where space is tight. Backlash is quoted in arc-minutes; lower values suit positioning axes.
Selecting a gearbox
Choose the ratio from the required output speed and the motor speed, then check rated and peak output torque against the load. Confirm the motor-side flange and shaft (the gearbox must match your servo or stepper motor), the maximum input speed, the output type (solid keyed shaft, hollow shaft or flange output) and the mounting orientation.
Before you enquire
What to include in your enquiry
Having these details ready lets us confirm a model and quote in one step.
- Ratio or required output speed and torque
- Motor model or motor flange and shaft dimensions
- Backlash class (arc-minutes) needed
- Output type: solid shaft, hollow shaft or flange
- Inline or right-angle layout
