Nidec Dynabox Precision Worm Gearboxes
Right-angle precision worm gearheads
Right-angle servo gearheads with solid-shaft, hollow-shaft and robot-flange outputs, offered in Expert, Medium and Basic accuracy classes.
- Three accuracy classes: Expert, Medium, Basic
- Input speed up to 6000 rpm
- Solid, hollow-shaft (keyway or taper lock) and robot-flange output types
Adding to the list only saves it in your browser. Nothing is sent until you press a send button on the enquiry page. Price and availability are given on quotation.
Specifications
- Series
- Dynabox
- Gear type
- Precision worm, right angle
- Accuracy classes
- Expert, Medium, Basic (arc-minutes)
- Maximum input speed
- Up to 6000 rpm
Specifications are given to identify and compare products. Confirm the exact model, ratings and options against the manufacturer’s datasheet, or with us, before ordering.
Variants
| Output type | Note |
|---|---|
| Solid output shaft | Single or dual shaft, classic solution |
| Hollow output shaft | Hollow shaft with keyway or taper lock |

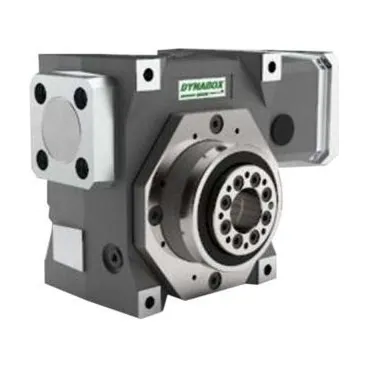

| Robot flange output | For tilting stiffness and compactness |
Choosing the right one
Not sure this is the right precision gearboxe? Read the buying guide for precision gearboxes, then send us the details below so we can confirm a model.
- Ratio or required output speed and torque
- Motor model or motor flange and shaft dimensions
- Backlash class (arc-minutes) needed
- Output type: solid shaft, hollow shaft or flange
- Inline or right-angle layout
