Photographs are for identification. Appearance can vary by model and revision.
Nidec VRL, VRSF, VRXF Planetary Gearboxes
Inline planetary gearboxes for servo and stepper motors
Inline planetary gearboxes in three series for servo and stepper motors, from a lightweight value-engineered series to helical-geared high-torque-density units.

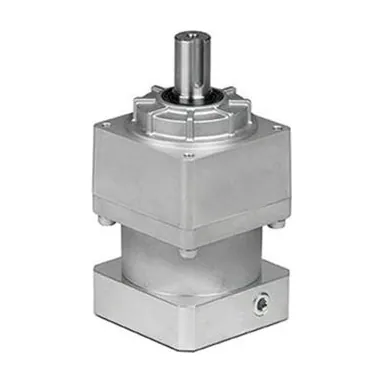

- VRSF: lightweight aluminium frame for lower duty-cycle servo and stepper applications

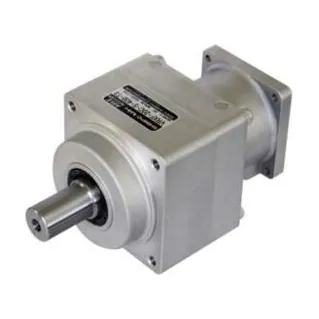

- VRXF: mounting-compatible with its predecessor, with gear design improvements
- VRL: helical gearing, robust construction and high torque density
Adding to the list only saves it in your browser. Nothing is sent until you press a send button on the enquiry page. Price and availability are given on quotation.
Specifications
- Layout
- Inline (coaxial) planetary
- Series listed
- VRL, VRSF, VRXF
- Sample codes
- VRL-090C-10-K5-28HA22; VRXF-9C-K-14BJ14
Specifications are given to identify and compare products. Confirm the exact model, ratings and options against the manufacturer’s datasheet, or with us, before ordering.
Choosing the right one
Not sure this is the right precision gearboxe? Read the buying guide for precision gearboxes, then send us the details below so we can confirm a model.
- Ratio or required output speed and torque
- Motor model or motor flange and shaft dimensions
- Backlash class (arc-minutes) needed
- Output type: solid shaft, hollow shaft or flange
- Inline or right-angle layout
