Incremental Rotary Encoders
Incremental shaft encoders, Ø40 to Ø68 mm
Incremental rotary encoders in several body sizes, shaft diameters and output types. Send the shaft size, pulses per revolution and output type you need.
- Body sizes from Ø40 mm to Ø68 mm
- Resolutions from 100 to 2500 pulses per revolution
- NPN, totem-pole, push-pull and line-driver outputs
Adding to the list only saves it in your browser. Nothing is sent until you press a send button on the enquiry page. Price and availability are given on quotation.
Specifications
- Details
- Per model in the table below
Specifications are given to identify and compare products. Confirm the exact model, ratings and options against the manufacturer’s datasheet, or with us, before ordering.
Models and ratings
Add a specific model to your enquiry list with its own quantity.
| Model | Shaft / body | Resolution | Output | Supply | Protection | Enquiry |
|---|---|---|---|---|---|---|

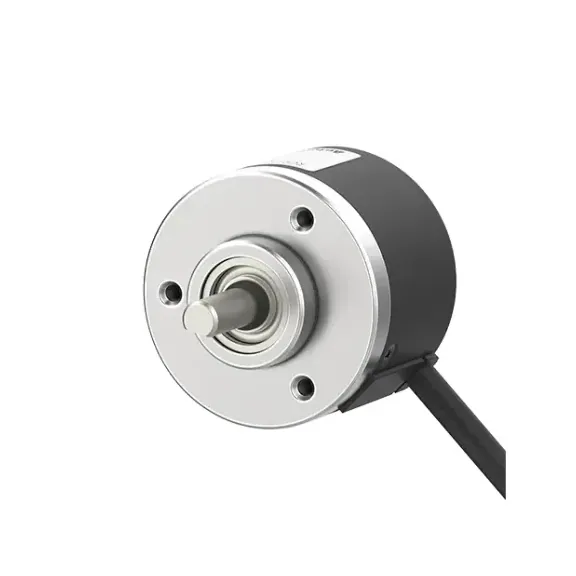

| E40S6-1000-3-T-24 | Ø6 mm shaft | 1000 P/R | Totem pole | 12 – 24 V DC | IP50 | |
| E68S15-1024-6-L-5 | Ø15 mm shaft | 1024 P/R | Line driver | 5 V DC | IP65 | |

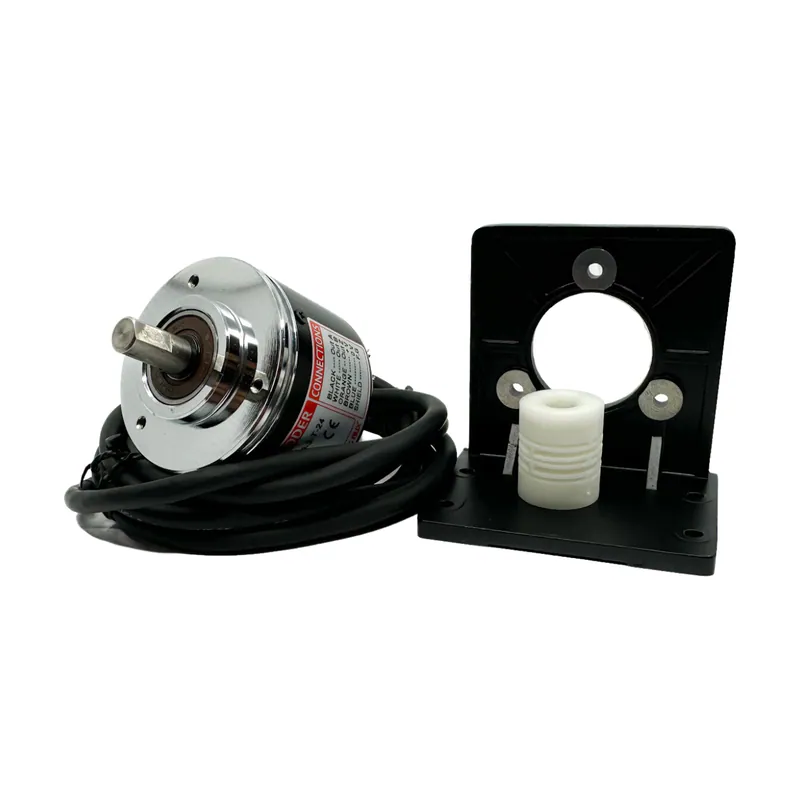

| HE50B-8-100-3-N-24 | Ø8 mm shaft | 100 P/R | NPN open collector | 12 – 24 V DC | IP50 | |
| BI-52S-2500-PU | Ø52 mm body, solid shaft | 2500 P/R | Push-pull, ABZ | 5 – 24 V DC | IP54 |
Choosing the right one
Not sure this is the right sensors and encoder? Read the buying guide for sensors and encoders, then send us the details below so we can confirm a model.
- Sensor type: inductive, photoelectric, fibre, pressure or encoder
- Sensing distance, or pulses per revolution and shaft size for encoders
- Supply voltage and output type (NPN/PNP, NO/NC)
- Housing size or mounting details
- Existing part number if you are replacing a unit
