Delta TP04G and TP04P Text Panel HMIs
Four-line text panels

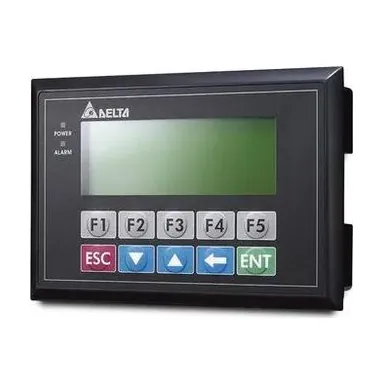

Four-line text panels with function keys. The TP04G-AL-C / AL2 has a 4.1″ monochrome STN display; the TP04P has a built-in PLC with integrated I/O.
- 4.1″ STN-LCD, 192 × 64, monochrome (TP04G)
- 10 function keys; password protection; user-defined boot screen
- Built-in real-time clock

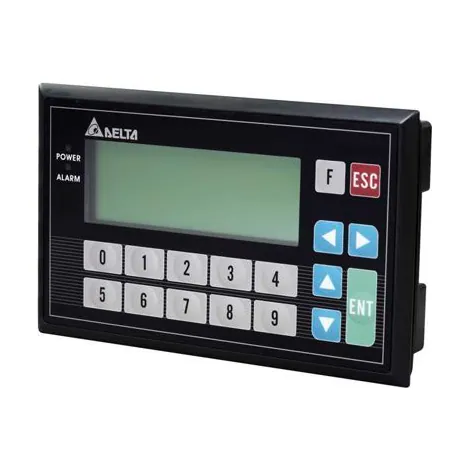

- TP04P: text panel with built-in PLC and integrated I/O
Adding to the list only saves it in your browser. Nothing is sent until you press a send button on the enquiry page. Price and availability are given on quotation.
Specifications
- Series
- TP04G, TP04P
- Display (TP04G)
- 4.1″ STN-LCD, 192 × 64, monochrome
- Flash memory (TP04G)
- 256 KB
- Serial ports (TP04G)
- RS-232 and RS-422/485
- Editing software (TP04G)
- TPEditor
- Cut-out size (TP04G)
- 101 × 35.24 mm
Specifications are given to identify and compare products. Confirm the exact model, ratings and options against the manufacturer’s datasheet, or with us, before ordering.
Choosing the right one
Not sure this is the right HMI? Read the buying guide for HMIs, then send us the details below so we can confirm a model.
- Screen size and touch or keypad preference
- PLC or drive brand and model to connect to
- Ports required: Ethernet, USB, RS-232, RS-485
- Panel cut-out or existing HMI model being replaced
