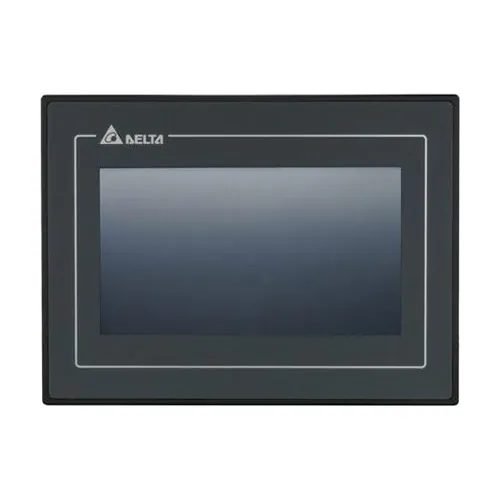

Delta DOP-100 Series HMI

Colour TFT touch HMI, 4.3 to 10.1 inch

Touch HMIs in 4.3, 7 and 10.1 inch sizes with 65,536 colours, in Basic, Standard and Advanced variants. Advanced and Ethernet models add built-in Ethernet and network monitoring.

65,536-colour TFT display, 4.3″, 7″ and 10.1″
USB host on all models; Ethernet on Ethernet and Advanced models
FTP, email, VNC and web monitoring on Advanced models
Operating temperature 0 – 50 °C; storage −20 to 60 °C

Adding to the list only saves it in your browser. Nothing is sent until you press a send button on the enquiry page. Price and availability are given on quotation.

Specifications

Series: DOP-100
Display: 65,536-colour TFT
CPU (Basic / Standard): Cortex-A8, 800 MHz
Operating temperature: 0 – 50 °C
Storage temperature: −20 – 60 °C

Specifications are given to identify and compare products. Confirm the exact model, ratings and options against the manufacturer’s datasheet, or with us, before ordering.

Models and ratings

Add a specific model to your enquiry list with its own quantity.

Memory and ports as listed for each model.
Model	Size	Resolution	RAM / ROM	Ports
DOP-103BQ	4.3″ Basic	480 × 272	256 MB / 256 MB	1 COM + 1 extension COM; USB host and client
DOP-103WQ	4.3″ Advanced	480 × 272	512 MB / 256 MB	1 COM + 1 extension COM; Ethernet; USB host
DOP-107BV	7″ Basic	800 × 480	256 MB / 256 MB	1 COM + 1 extension COM; USB host and client
DOP-107CV	7″ Standard	800 × 480	256 MB / 256 MB	2 COM + 1 extension COM; USB host and client
DOP-107EV	7″ Standard Ethernet	800 × 480	256 MB / 256 MB	2 COM + 1 extension COM; Ethernet; USB host
DOP-107WV	7″ Advanced	800 × 480	512 MB / 256 MB	2 COM + 1 extension COM; Ethernet; USB host
DOP-110CS	10.1″ Standard	1024 × 600	256 MB / 256 MB	2 COM + 1 extension COM; USB host and client
DOP-110WS	10.1″ Advanced	1024 × 600	512 MB / 256 MB	2 COM + 1 extension COM; Ethernet; SD card; USB host
