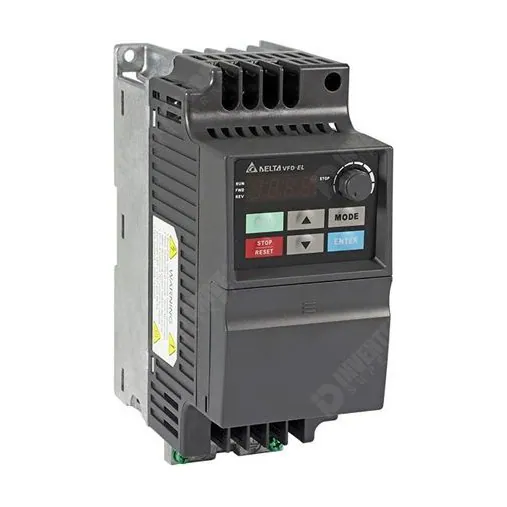

Delta VFD-EL-W Series Compact Vector Drive
Compact vector-control AC drive
Compact sensorless-vector drive with built-in PID, multi-pump and constant-pressure water-supply functions, suited to simple speed control, horizontal movement and fixed loads.
- Multi-step operation and torque compensation
- PID control, multi-pump control and constant-pressure water supply
- Leakage detection function
Adding to the list only saves it in your browser. Nothing is sent until you press a send button on the enquiry page. Price and availability are given on quotation.
Specifications
- Series
- VFD-EL-W
- Power range (models listed)
- 0.2 kW – 2.2 kW (0.25 – 3 HP)
- Supply
- 230 V single-phase; 460 V three-phase
- Control
- Sensorless vector
Specifications are given to identify and compare products. Confirm the exact model, ratings and options against the manufacturer’s datasheet, or with us, before ordering.
Models and ratings
Add a specific model to your enquiry list with its own quantity.
| Model | Motor power | Supply | Enquiry |
|---|---|---|---|
| VFD002EL21W-1 | 0.2 kW (0.25 HP) | 1-phase 230 V | |
| VFD004EL21W-1 | 0.4 kW (0.5 HP) | 1-phase 230 V | |
| VFD007EL21W-1 | 0.75 kW (1 HP) | 1-phase 230 V | |
| VFD007EL43W-1 | 0.75 kW (1 HP) | 3-phase 460 V | |
| VFD015EL21W-1 | 1.5 kW (2 HP) | 1-phase 230 V | |
| VFD022EL21W-1 | 2.2 kW (3 HP) | 1-phase 230 V | |
| VFD022EL43W-1 | 2.2 kW (3 HP) | 3-phase 460 V |
Typical applications
- Water supply and booster pumps
- Horizontal conveyors
- Fixed-load machines
Choosing the right one
Not sure this is the right AC drive? Read the buying guide for AC drives, then send us the details below so we can confirm a model.
- Motor rating in kW or HP, voltage and full-load current
- Supply: single-phase or three-phase, and voltage
- Application: fan, pump, conveyor, machine tool, hoist or other
- Speed reference (0–10 V, 4–20 mA, keypad, communication) and any PLC link
- Whether braking, an EMC filter or an IP55 enclosure is needed
- Brand or series if you are replacing an existing drive, with its model code
