CHINT · Control devices, relays & accessories
CHINT NP2 and ND16 Pushbuttons and Indicators
22 mm pushbuttons, selector switches and pilot lamps
CHINT NP2-series pushbuttons, selector switches, mushroom heads and illuminated buttons, with ND16 indicator lamps, built to IEC/EN 60947-5-1.
- NP2: AC 50/60 Hz, AC 380 V / DC 220 V; IP40
- ND16 indicators: IP65 / IP40 / IP20 (buzzer)
- Ambient temperature −5 to +40 °C
Adding to the list only saves it in your browser. Nothing is sent until you press a send button on the enquiry page. Price and availability are given on quotation.
Specifications
- Standard
- IEC/EN 60947-5-1
- Ratings (NP2)
- AC 50/60 Hz, AC 380 V / DC 220 V
- Protection
- NP2: IP40; ND16: IP65, IP40, IP20 (buzzer)
- Ambient temperature
- −5 to +40 °C
Specifications are given to identify and compare products. Confirm the exact model, ratings and options against the manufacturer’s datasheet, or with us, before ordering.
Models and ratings
Add a specific model to your enquiry list with its own quantity.
| Model | Device | Enquiry |
|---|---|---|

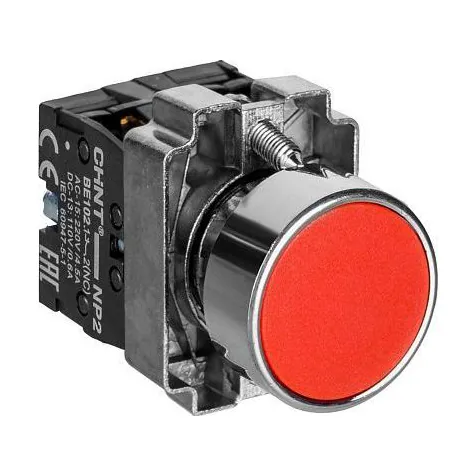

| NP2-BA35 | Pushbutton, NO + NC | |
| NP2-BA45 | Pushbutton, 1 NO + 1 NC | |

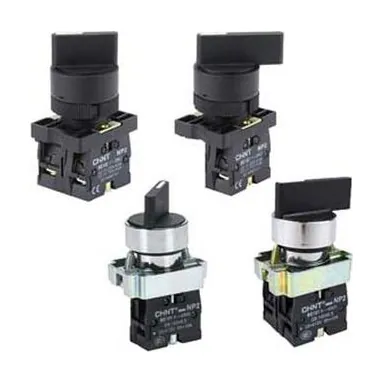

| NP2-BD55 | Selector switch | |

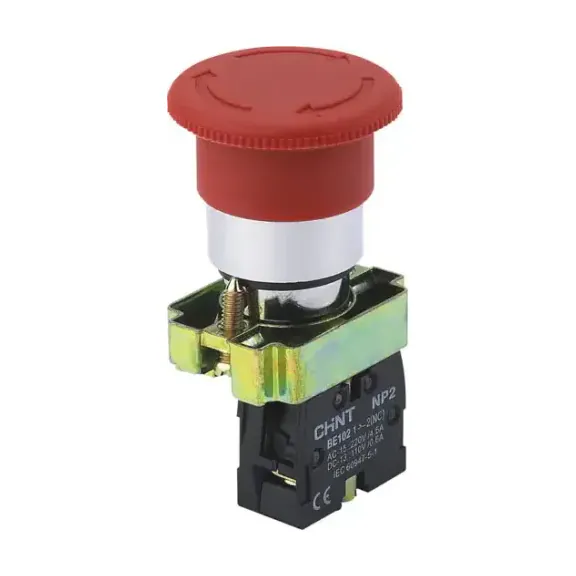

| NP2-BS542 | Mushroom-head pushbutton, 1 NC | |

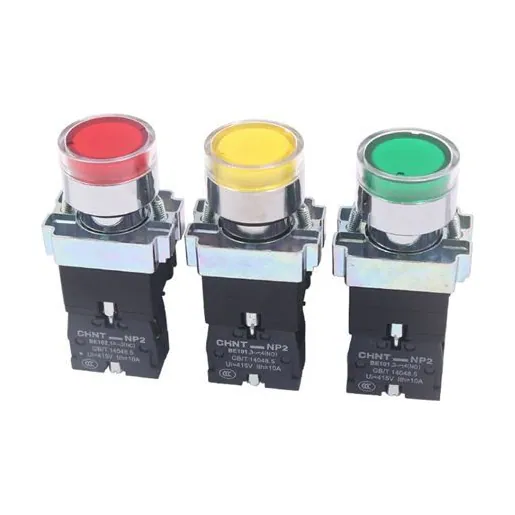

| NP2-BW3365 | Illuminated pushbutton, 230 V LED | |

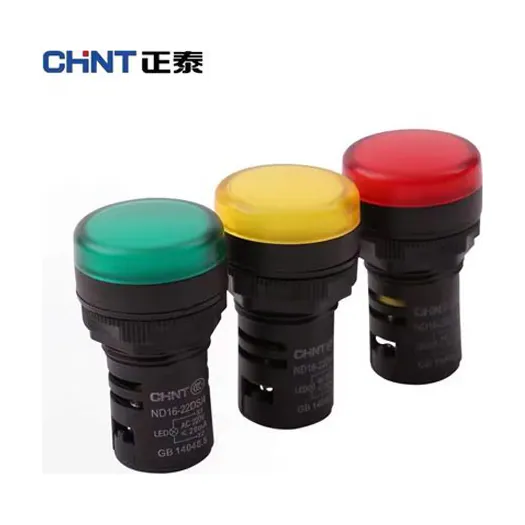

| ND16-22B/2 | Indicator lamp, 24 V |
Choosing the right one
Not sure this is the right control devices and panel accessorie? Read the buying guide for control devices and panel accessories, then send us the details below so we can confirm a model.
- Device type and function
- Coil or lamp voltage
- Contact arrangement (NO/NC) and current rating
- Mounting: panel hole size, DIN rail or socket
