CHINT · Switchgear & circuit protection
CHINT NXC and NC1 AC Contactors
Three-pole AC power contactors
Three-pole AC power contactors: the NXC series from 9 A to 630 A and the NC1 series from 9 A to 95 A, with a range of coil voltages.
- NXC: 9 A – 630 A
- NC1: 9 A – 95 A
- Coil voltages from 24 V to 415 V depending on series
Adding to the list only saves it in your browser. Nothing is sent until you press a send button on the enquiry page. Price and availability are given on quotation.
Specifications
- Poles
- 3
Specifications are given to identify and compare products. Confirm the exact model, ratings and options against the manufacturer’s datasheet, or with us, before ordering.
Variants
| Series | Rated current | Coil voltage (50/60 Hz) |
|---|---|---|
| NXC (example NXC-32) | 9 A – 630 A | 110 – 415 V |

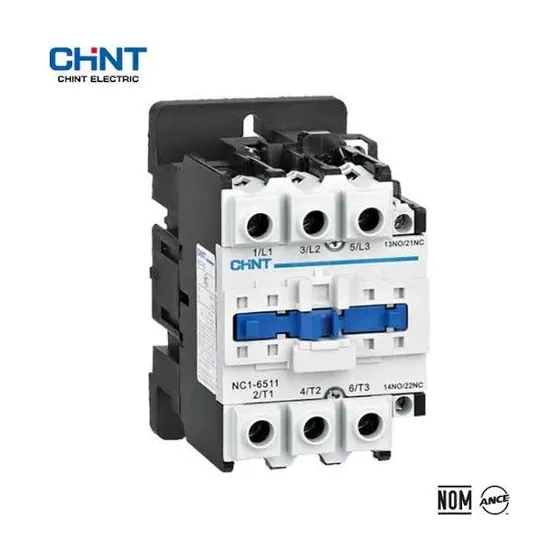

| NC1 (example NC1-6511) | 9 A – 95 A | 24, 36, 48, 110, 220 V (230 V coil listed) |
Choosing the right one
Not sure this is the right switchgear? Read the buying guide for switchgear, then send us the details below so we can confirm a model.
- Device type, poles and rated current
- Curve (B, C, D) and breaking capacity, for MCBs
- Motor kW or HP and voltage, for contactors and overload relays
- Coil voltage and auxiliary contacts needed
- Brand and series to match existing panel devices
