BCH Electric · Switchgear & circuit protection
BCH Electric X10 MCBs and Isolators
MCBs and 4-pole isolator, up to 63 A
BCH Electric X10-series miniature circuit breakers in single-, double-, triple- and four-pole versions, and a four-pole 63 A isolator.
- X10 series MCBs in 1P, 2P, 3P and 4P
- Four-pole 63 A isolator
- For home, commercial and industrial installations
Adding to the list only saves it in your browser. Nothing is sent until you press a send button on the enquiry page. Price and availability are given on quotation.
Specifications
- Series
- BCH X10
Specifications are given to identify and compare products. Confirm the exact model, ratings and options against the manufacturer’s datasheet, or with us, before ordering.
Models and ratings
Add a specific model to your enquiry list with its own quantity.
| Model | Description | Enquiry |
|---|---|---|

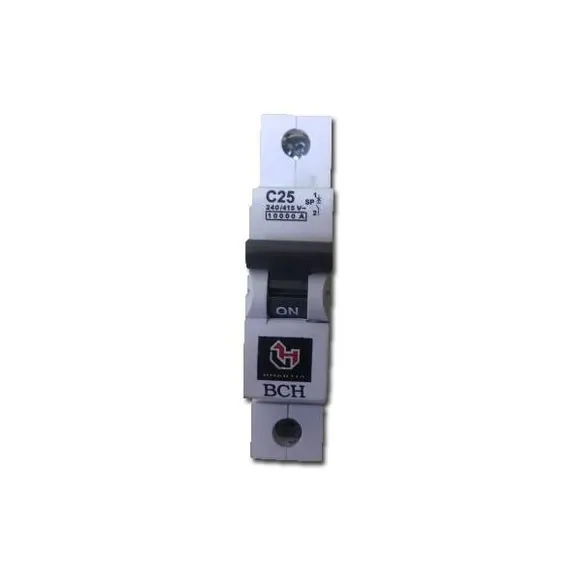

| BCH X10 SP C25 | MCB, single pole, C curve, 25 A | |
| BCH X10 DP C16 | MCB, double pole, C curve, 16 A | |
| BCH X10 TP C32 | MCB, triple pole, C curve, 32 A | |

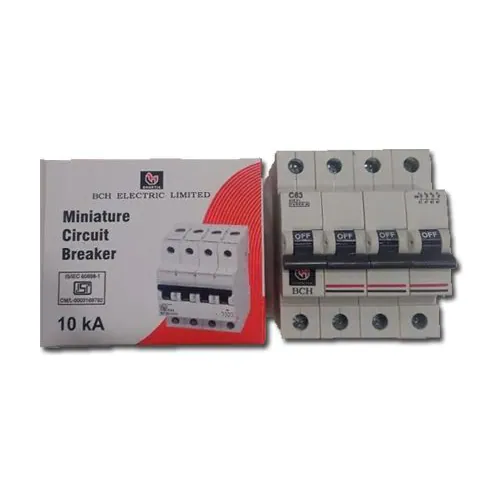

| BCH X10 FP C63 | MCB, four pole, C curve, 63 A | |

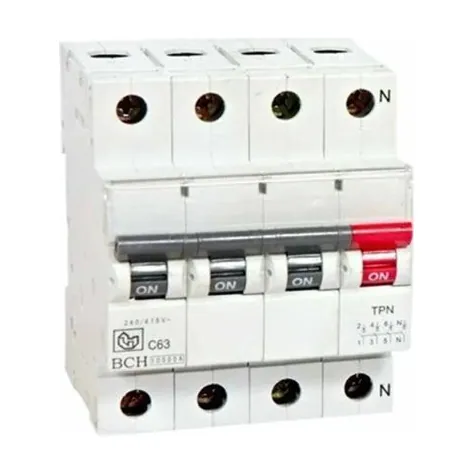

| BCH ISO FP 63 | Isolator, four pole, 63 A |
Choosing the right one
Not sure this is the right switchgear? Read the buying guide for switchgear, then send us the details below so we can confirm a model.
- Device type, poles and rated current
- Curve (B, C, D) and breaking capacity, for MCBs
- Motor kW or HP and voltage, for contactors and overload relays
- Coil voltage and auxiliary contacts needed
- Brand and series to match existing panel devices
