Autonics · Temperature controllers & instruments
Autonics LA8N, LE8N and MP5W Counters and Meters
Digital counter, hour meter and pulse meter
Panel-mount digital instruments: an 8-digit LCD counter, an 8-digit LCD hour meter and a 16-mode pulse meter.
- LA8N-BF counter and LE8N-BF hour meter with long-life built-in battery
- MP5W-4N pulse meter with 16 operation modes
- IP66 front panel on LA8N / LE8N
Adding to the list only saves it in your browser. Nothing is sent until you press a send button on the enquiry page. Price and availability are given on quotation.
Specifications
- Details
- Per model below
Specifications are given to identify and compare products. Confirm the exact model, ratings and options against the manufacturer’s datasheet, or with us, before ordering.
Models and ratings
Add a specific model to your enquiry list with its own quantity.
| Model | Function | Display | Notes | Enquiry |
|---|---|---|---|---|
| LA8N-BF | Counter (count up) | 8-digit 7-segment LCD | Built-in battery, over 7 years; min. signal width 20 ms; IP66 front | |

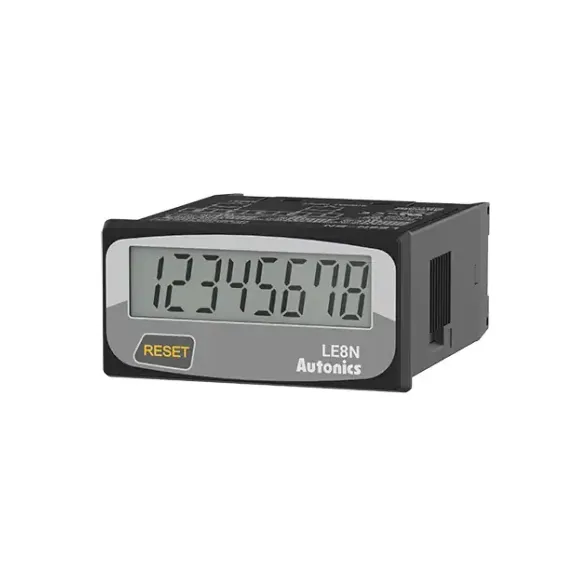

| LE8N-BF | Hour meter (power-on start) | 8-digit 7-segment LCD | Built-in battery, over 10 years; IP66 front | |

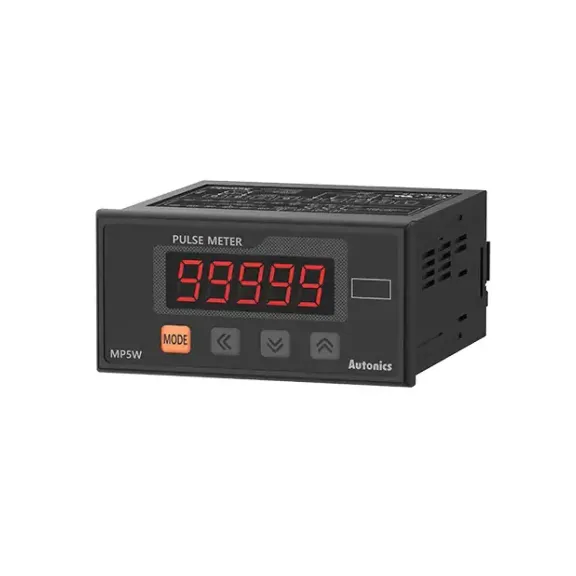

| MP5W-4N | Pulse meter | 5-digit 7-segment LED, 14 mm | 16 modes incl. frequency, speed and length; range 0.0005 Hz – 50 kHz |
Choosing the right one
Not sure this is the right temperature controllers and process instrument? Read the buying guide for temperature controllers and process instruments, then send us the details below so we can confirm a model.
- Sensor type and temperature range
- Output required: relay, SSR drive or 4–20 mA
- Panel cut-out size
- Heater load in kW and supply voltage, for power controllers
